Crown Moulding 6-23/32" - 5
Crown Moulding 6-23/32" - 5

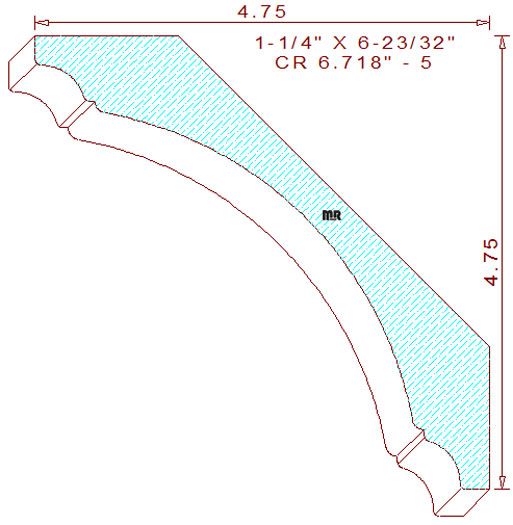

This Cove/Crown Moulding 6-23/32" - 5 measures 6.718" wide by 1.250" thickness, the profile is comprised of a 4" radius cove in the center flanked by 1/8" radiuses attached to two smaller cavetto's at the top and bottom. The spring angles are fixed at forty-five degree which set the installed height and projection at an identical dimension of 4-3/4" tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
