Crown Moulding 6-23/32" - 7
Crown Moulding 6-23/32" - 7

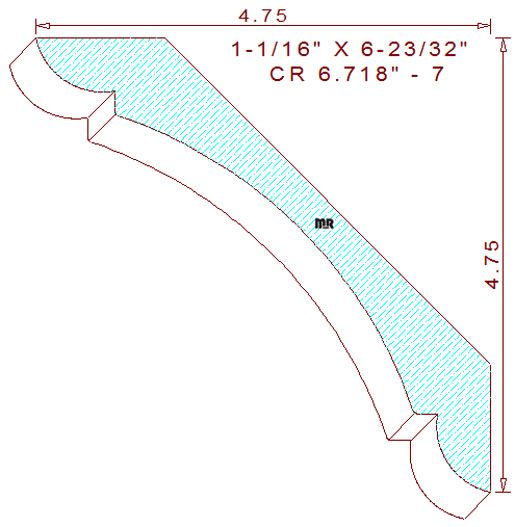

This Opulent Crown Moulding 6-23/32" - 7 measures 6.718" wide by 1.062" thickness. The symmetrical design consist of 23/32" quarter round radius's with fillet, on both, top and bottom of the profile, a large 4-59/64" radius cove consumes the middle portion. Installed height and projection are identical at 4-3/4", the spring angles are set at forty-five degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
