Crown 6-23/32" - 8
Crown 6-23/32" - 8

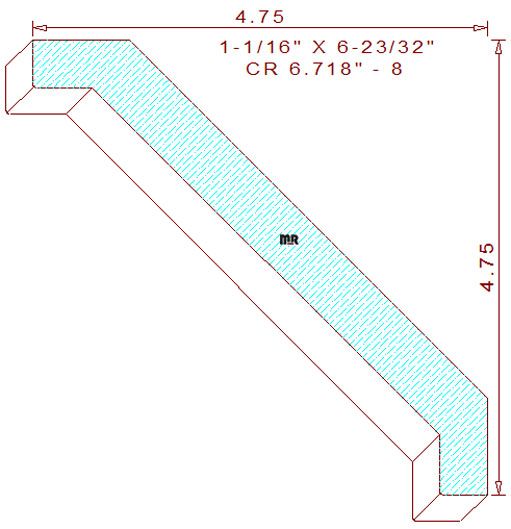

This beveled 6-23/32" - 8 crown mould measures 6.718" wide by 1.062" thickness, it will require five quarter lumber to properly mill this pattern, the symmetrical design consist of a 1/2" wide fillet on both the top and bottom of the pattern, it has an inset fillet of 5/8" that transitions into a 5-1/8" splay face which is recessed in the center of the profile. When correctly installed, the height and projection will be identical at 4-3/4" tall and wide, the spring angles are fixed at forty-five degrees, and the points were purposely positioned on the same plane for maximum hold-down capabilities during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.725
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.725
Top Cutter Head
Width: 6.750
Depth of Cut: 0.430
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$433.00
Not Needed
Total:
$742.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$463.00
Not Needed
Total:
$791.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$508.00
Not Needed
Total:
$864.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
