Crown Moulding 6-31/32" - 1
Crown Moulding 6-31/32" - 1

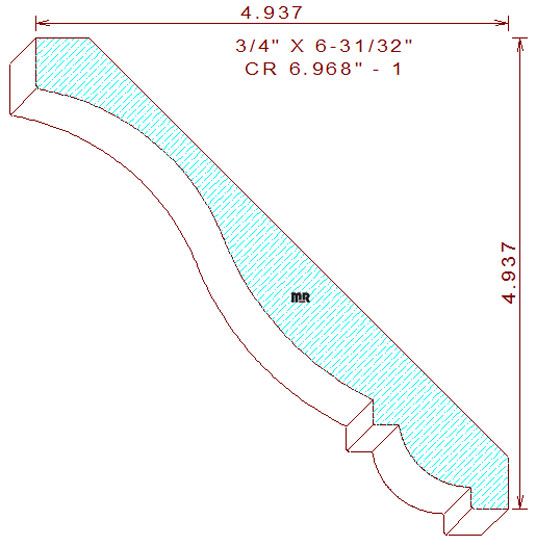

This Crown Moulding 6-31/32" - 1 measures 6.968" wide by .750" thickness. The profile is composed of a fillet on top, a large french curve or cyma recta placed in the middle, and an ovolo in the lower portion, installed height and projection are identical at 4-15/16" tall and wide and the spring angles are set at forty five degree.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
