Crown 7" - 11

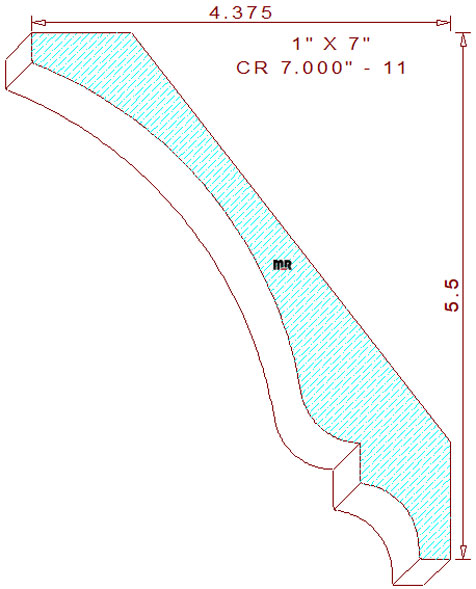

This appealing 7" - 11 crown mould measures 7.028" wide by 1.000" thick, requiring the use of five-quarter lumber for machining on an industrial-style molder. The graceful terminating profile features a 5/16" vertical fillet on the top left. The tall segment connects to a 4-1/32" concave semicircle tangent to a 5/8" convex arc, creating the center's elegant cyma recta. The lower portion retains a 13/32" tall line joined to a 43/64" cove with a 5/16" flat line on the bottom right side of the pattern. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-15/16" tall with a projection of 4-9/16" across the top.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years' experience in woodworking and a former Weinig field service technician. From just an idea in one's mind to reality in their beautiful home, our custom profiles reflect your imagination's creative style. Let us help you complement the architectural decor of any room with any one or more of our attractive patterns.
