Crown Moulding 7" - 12

Crown Moulding 7" - 12

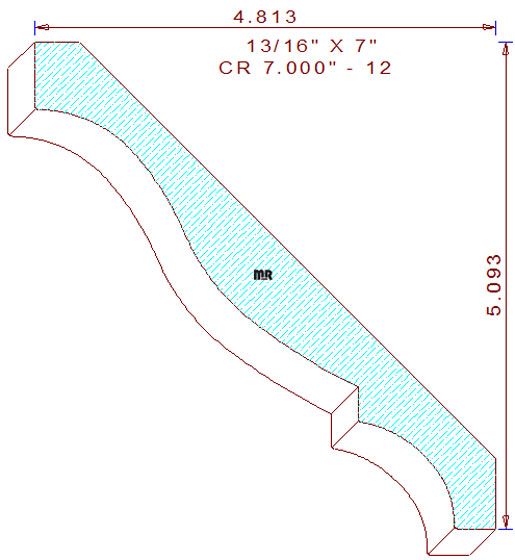

This Classic Crown Moulding 7" - 12 measures 7.000" wide by .812" thickness, the design is a classic cyma recta (french curve) flanked by vertical fillets with a cavetto (cove) and horizontal fillet at the bottom of the pattern. When installed the height becomes 5-5/32" tall with a projection for 4-13/16" wide, the spring angles are fixed at forty-five degree with two points of the design purposely positioned on the same level plane creating optimal hold down conditions during the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
