Crown 7" - 16
Crown 7" - 16

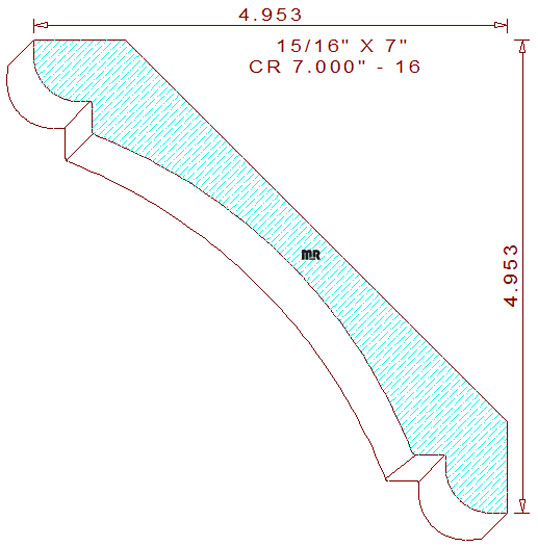

This symmetrical 7" - 16 crown mould measures 7.000" wide by .938" thickness. The equally proportioned profile consists of a 5-55/64" radius cavetto positioned in the center, flanked by an 11/32" vertical and horizontal straight line with a 1/2" radius quarter round bead located at the top and bottom of the pattern. The spring angles are fixed at forty-five degrees, which sets the installed height and projection at an identical dimension of 4-61/64" tall and wide. From just an idea in your mind to reality in your home, our moulding knife profile designs reflect the beauty and style of your imagination.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.677
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.677
Top Cutter Head
Width: 7.000
Depth of Cut: 0.495
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$446.00
Not Needed
Total:
$755.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$477.00
Not Needed
Total:
$805.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$523.50
Not Needed
Total:
$880.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
