Crown 7" - 17
Crown 7" - 17

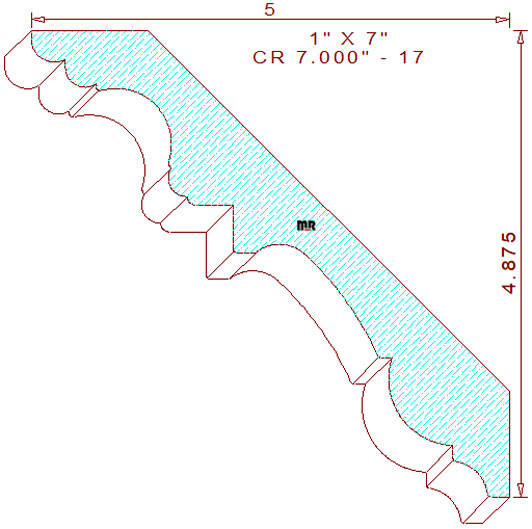

This distinguished 7" - 17 crown mould measures 6.983" width by 1.000" thickness, requiring the use of five-quarter lumber for machining on a commercial-grade molder. The sophisticated supporting profile features a wide range of classic geometric shapes, including quarter- and half-round beads, vertical & horizontal fillets, cavettos, and ellipses. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-7/8" tall with a projection of 5" across the top.
Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create, from your outlined idea concepts and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.865
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.777
Top Cutter Head
Width: 7.000
Depth of Cut: 0.503
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$446.00
Not Needed
Total:
$755.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$477.00
Not Needed
Total:
$805.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$523.50
Not Needed
Total:
$880.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
