Crown Moulding 7" - 2

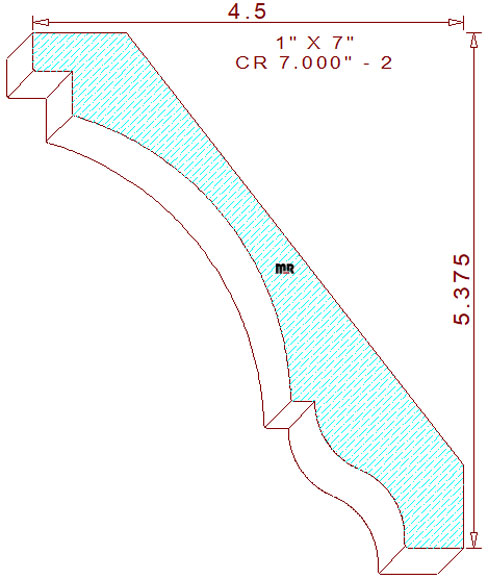

This concave crown molding 7" - 2 measures 7.006" width by 1.000" thickness, allowing the use of five quarter lumber for machining on an industrial-grade molder. The attractive terminating profile contains a 13/32" tall vertical line, joined to a 13/32" wide by 15/32" tall perpendicular notch on the top left. The notch connects to a 3-5/32" radius concave semicircle in the center, merged with a 1/4" horizontal fillet and a two tangent radius ogee with a 5/8" broad line on the bottom right corner of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-3/8" tall with a projection of 4-1/2" across the top. We offer an alternative profile with forty-five degree back bevels for your review and consideration, crown moulding 7.000" - 23.

Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .625" (top knives).

Thickness = 1.000" / Depth of Cut = .598" (right blades) & .677" (left cutters).
