Crown 7" - 20

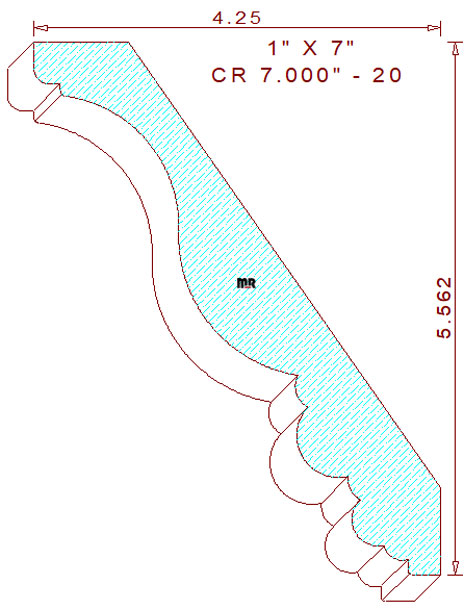

This ornate 7" - 20 crown mould measures 7.000' wide by 1.000" thick. The lovely terminating design consists of a 7/16" tall vertical line with a 5/32" radius edge connected to a 9/32" wide by 1/8" tall notch on top, attached to a two tangent radius cyma recta in the center, joined to a series of five different sized radius half round beads with a 5/32" tall by 21/32" wide squared lines at the bottom of the design.

The spring angles are fixed at thirty-five and fifty-five degrees, these specific back bevels set the installed height at 5-9/16" tall with a projection of 4-1/4" wide. Read our commentary about axial constant positioning for crown bevels. The article will help you dial this profile in axially on the first try when milling this detail, provided the machine is axially calibrated. Four high points in the detail were deliberately positioned on the same plane; our specialized design features will assure excellent hold-down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates. We recommend using a felt-lined pressure shoe to eliminate any unsightly burnish mark left on the finish moulding by the metal hold-down element on the machinery.
