Crown Moulding 7" - 34

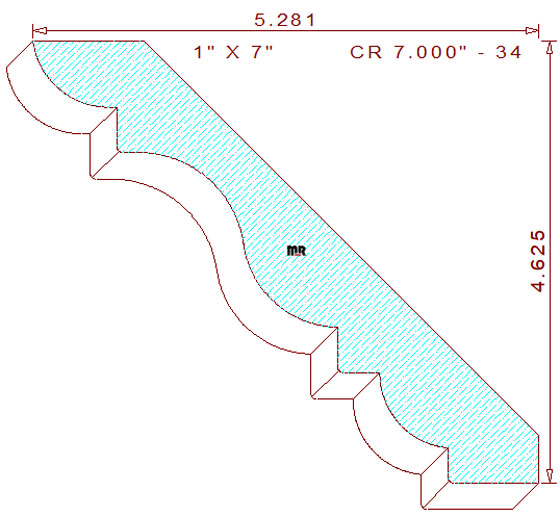

This intriguing crown molding 7" - 34 measures 7.005" width by 1.000" thickness authorizing the use of five quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The beautiful supporting profile contains a 51/64" quarter round convex arc joined to a 15/32" vertical line on the top left. The tall fillet connects to a free-flowing two tangent radius cyma recta merged with a 7/16" wide by 15/32" tall perpendicular lines in the center. The lower portion of the pattern consists of a 25/32" radius ovolo attached to a 3/8" vertical, by 61/64" horizontal line on the bottom right corner of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 4-5/8" tall with a projection of 5-9/32" across the top.

Need this profile template and a set of molding cutters quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several different architectural eras; there are thousands of compelling designs to help match your creative style.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .726" (top knives).

Thickness = 1.000" / Depth of Cut = .354" (right blades) & .818" (left cutters).
