Crown Moulding 7" - 4

Crown Moulding 7" - 4

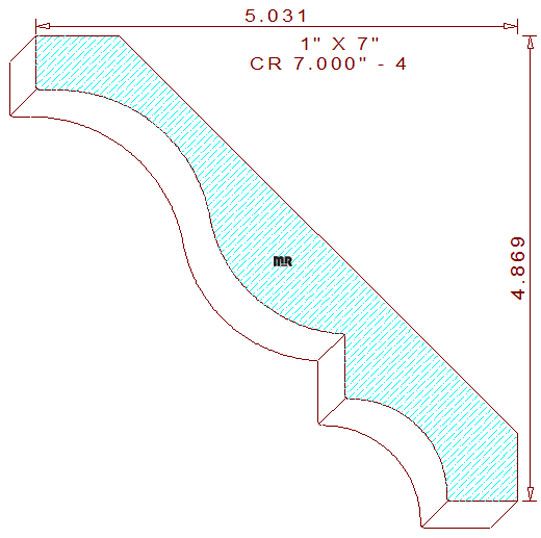

This Large Standard Crown Moulding 7" - 4 measures 7.000" wide by 1.000" thickness. The classic profile is comprised of a 1-5/8" and a 1-1/2" tangent radius creating a cyma recta in the upper portion which is flanked by vertical fillets, a cavetto and horizontal fillet is positioned at the bottom of the design. The spring angles are fixed at forty-five degree which sets the installed height at just under 4-7/8" tall with a projection of 5-1/32" wide. Three points of the design are intentionally positioned on the same level plane creating superior hold down conditions while milling the pattern on an industrial style moulder.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
