Crown 7-1/16" - 5
Crown 7-1/16" - 5

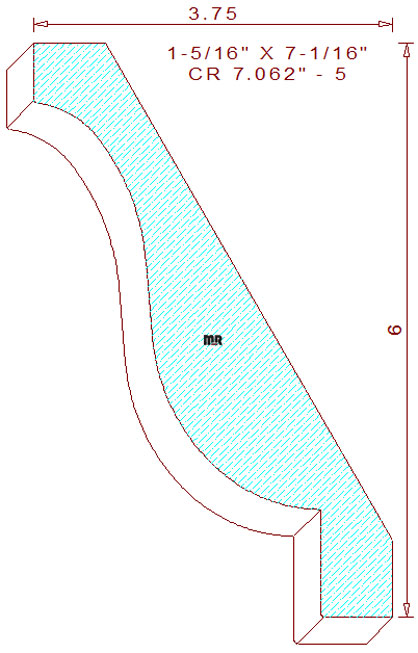

This graceful 7-1/16" - 5 cyma recta crown mould measures 7.071" wide by 1-5/16" thickness. The terminating profile comprises a large S-shaped curvature, flanked by a 5/8" tall vertical fillet at the top, and a 1-1/8" tall vertical fillet connected to a 3/4" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at 30 ° and 60 °; these specific bevels set the installed height to 6" and the projection to 3-3/4". Please review some of our helpful moulder and knife grinding articles. They will assist you with many aspects of moulder setup and knife-grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.652
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.405
Top Cutter Head
Width: 7.062
Depth of Cut: 1.031
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$480.47
Not Needed
Total:
$822.97
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$511.72
Not Needed
Total:
$873.22
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$558.59
Not Needed
Total:
$948.59
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
