Crown 7-1/16" - 6
Crown 7-1/16" - 6

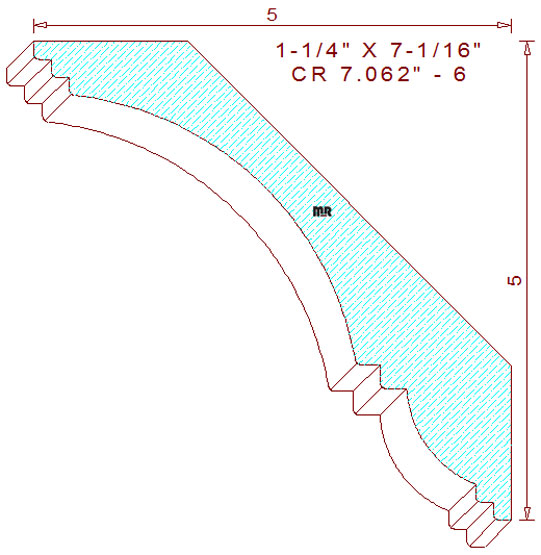

This beautifully large 7-1/16" - 6 crown mould measures 7.062" wide by 1.250" thick. The innovative terminating profile comprises a 3-3/8" radius cavetto in the center, flanked by three 3/16" stepped fillets on top, with an ovolo and two stepped fillets at the bottom of the pattern. The spring angles are fixed at forty-five degrees. Search our bevels category by degrees to find a back-bevel cutter appropriate for this luxurious crown moulding design. These dedicated back bevels set the installed height and projection at an identical dimension of 5" tall and wide. Five high points in the profile were intentionally positioned on the same level plane, this specialized design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is calibrated.
Ever wonder why some mouldings look and feel better than others in the industry? Please read our article on knife marks, learn how machine feed rates and rpm of the cutter head can directly affect the quality of your finished millwork.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.143
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.143
Top Cutter Head
Width: 7.062
Depth of Cut: 0.744
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$480.47
Not Needed
Total:
$808.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$152.00
(Template not needed)
$511.72
Not Needed
Total:
$858.72
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$209.25
$166.25
(Template not needed)
$558.59
Not Needed
Total:
$934.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
