Crown Moulding 7-5/64" - 2

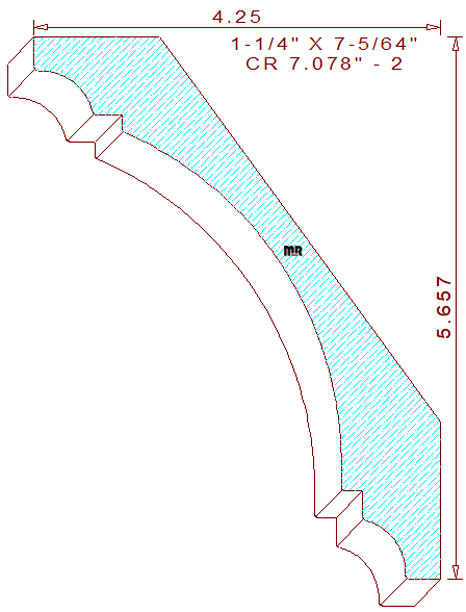

This large lavish crown moulding 7-5/64" - 2 measures 7.075" wide by 1.250" thickness, requiring the use of six quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The asymmetrical terminating profile is composed of a 3/8" high vertical line joined to a 9/16" cove and a 3/16" tall by 5/16" wide perpendicular notch on the top left, connected to a 3-49/64" concave semicircle in the center, attached to a 7/32" wide by 9/32" tall perpendicular notch with another 9/16" cavetto and a 3/8" wide horizontal line segment on the bottom right side of the design. In order to provide four even hold down points on the moulder while machining, the spring angles have been set at 36.209 and 53.791 degrees, these explicit back bevels keep the inner portion of the profile parallel to the wall and ceiling when installed, they also set the positioned height at 5-21/32" tall with a projection of 4-1/4" wide. We offer an alternative profile with similar design characteristics that has an identical height and projection for your review and consideration, crown moulding 8.000" - 7.

Architects, interior designers, contractors, lumber mills, cabinet shops and molding manufacturers have been utilizing our vast variety of moulding designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing cost.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.078" / Depth of Cut = .880" (top knives).

Thickness = 1.250" / Depth of Cut = .774" (right blades) & 1.325" (left cutters).
