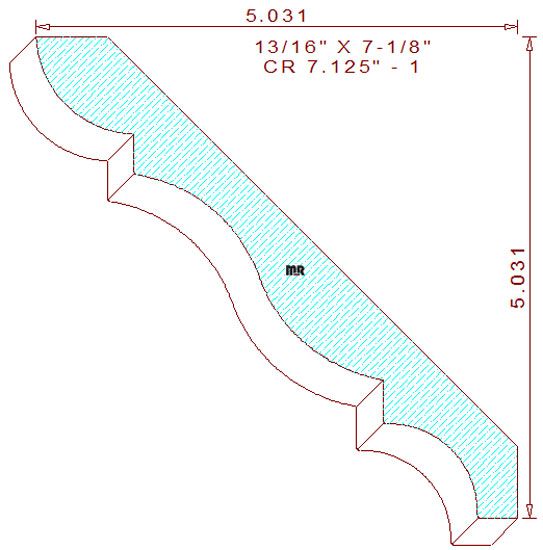

This Crown Moulding 7-1/8" - 1 measures 7.125" wide by .812" thickness, the profile is comprised of a cyma recta which is flanked by a vertical fillets connected to a quarter round bead on top and a covetto at the bottom. With the spring angles fixed at forty-five degree the installed height and projection have an identical dimensions of 5-1/32" tall and wide . This detail has three of the points in the design positioned on the same level plane, this design feature will create superior hold down conditions while milling the pattern on a industrial style moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
