Crown 7-1/8" - 3
Crown 7-1/8" - 3

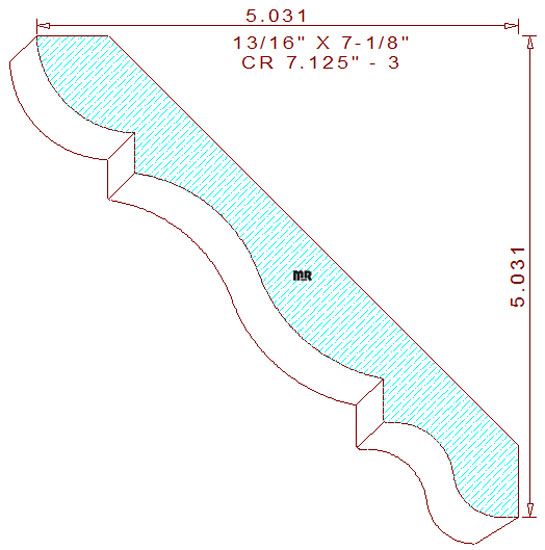

This delightful 7-1/8" - 3 crown mould measures 7.125" wide by .812" thick. The profile comprises a cyma recta in the center flanked by vertical fillets. The upper portion retains a 1-1/16" radius quarter-round bead; the lower section is attached to another smaller cyma recta. When installed, the height and projection have identical dimensions of 5-1/32" tall and wide, with the spring angles fixed at forty-five degrees. Two points in the design are intentionally positioned on the same level plane; this design feature will create superior hold-down conditions while milling the pattern on an industrial moulder.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.530
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.530
Top Cutter Head
Width: 7.125
Depth of Cut: 0.345
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$452.50
Not Needed
Total:
$742.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$484.00
Not Needed
Total:
$793.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$531.25
Not Needed
Total:
$868.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
