Crown Moulding 7-5/16" - 2

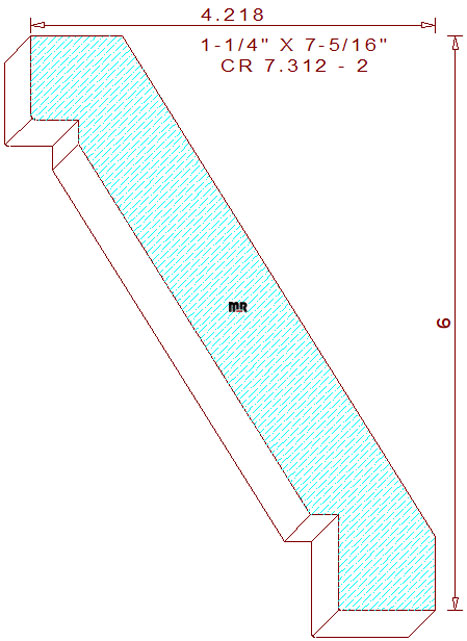

This elegant crown molding 7-5/16" - 2" measures 7.323" wide by 1.250" thickness, necessitating the use of six quarter lumber for milling on an industrial molder. The shaker style crown is composed of a 7/8" tall by 1/2" broad perpendicular lines on the top left, joined to a 1/4" vertical section merged with a 4-9/16" beveled area in the center. Attached to a 9/32" wide horizontal fillet and one inch by one inch squared lines at the bottom of the design. The spring angles are thirty-two and fifty-eight degrees. These particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed. The fixed back bevels set the oriented height at six inches tall with a projection of 4-7/32" wide. We offer another profile with similar design characteristics in a slightly smaller width for your review and consideration, crown molding 7-1/4" - 11.

Looking for that special molding to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the elegant beauty we can create together from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.312" / Depth of Cut = .965" (top knives).

Thickness = 1.250" / Depth of Cut = .504" (right blades) & .655" (left cutters).
