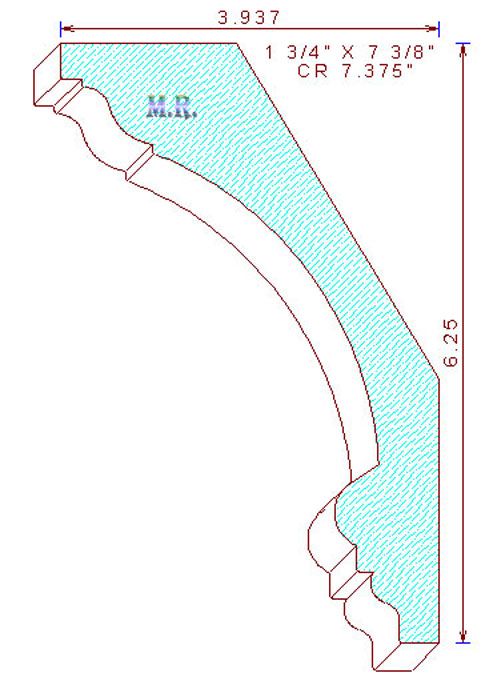

Crown 7-3/8"
Crown 7-3/8"
Crown Mould 7-3/8"
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 1.007
Left Cutter Head
Thickness: 1.750
Depth of Cut: 1.062
Top Cutter Head
Width: 7.375
Depth of Cut: 1.187
Bottom Cutter Head
Width: 7.375
Depth of Cut: 0.810
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.00
$183.00
$530.50
$498.00
Total:
$1394.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$193.00
$193.00
$563.00
$530.50
Total:
$1479.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$208.00
$208.00
$611.75
$579.25
Total:
$1607.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
