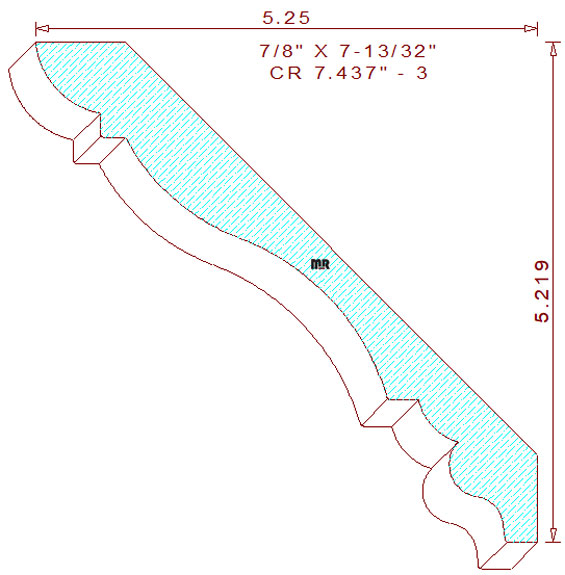

This Innovative Crown Moulding 7-7/16" - 3 measures 7.406" wide by .875" thickness with a depth of cut of .667" on the right vertical profile knives, a .648" depth of cut on the left set of blades, and a .492" depth of cut on the top horizontal cutters.
The lovely design is comprised of a two tangent cyma reversa in the middle, connected a small square beak profile with a 55/64" radius quarter round circle on the top. The lower section of the design consists of a 21/64" wide horizontal line attached to a 19/32" radius arc, with another smaller cyma reversa joined to a 11/32" wide horizontal line on the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 5-7/32" tall, with a projection of 5-1/4" wide. Two high points in the design were intentionally positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the pressure shoe is parallel to the bed plates.
Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your client's elegant home.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
