Crown Moulding 7-1/2"

Crown Moulding 7-1/2"

Crown Moulding 7-1/2"

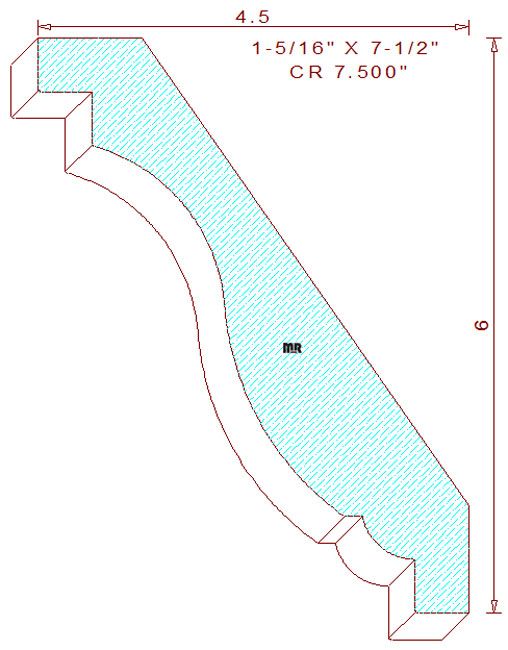

This Cyma Recta with Ovolo Crown Moulding 7-1/2" measures 7.500" wide by 1.312" thickness. The profile design consist of a 9/16" notched fillet at the top which is connected to a cyma recta in the center with a ovolo flanked by fillets at the bottom of the pattern. With the spring angles are fixed at thirty-five and fifty- five degree the installed height becomes 6" tall with a projection of 4-1/2" wide, please look in our bevels category for universal crown bevel knives for this design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
