Crown Moulding 7-1/2" - 3

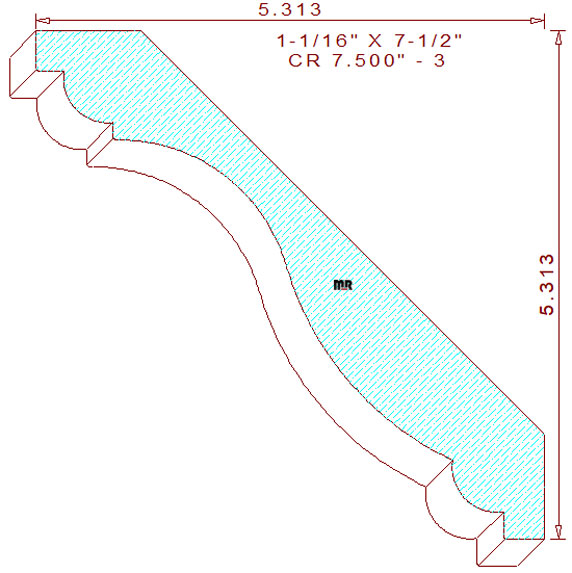

This elegant crown molding 7-1/2" - 3 measures 7.514" width by 1.063" thickness, requiring the use of five quarter lumber for machining on a commercial-grade molder. The graceful terminating profile contains a 7/16" tall by 9/32" wide perpendicular lines on the top left. The straight line connects to a 15/32" convex arc tied to 3/16" vertical fillet creating an ovolo, merged with a free-flowing two tangent radius cyma recta in the center. The lower portion retains a 15/32" half bead with a 9/32" tall by 7/16" wide right angle on the bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-5/16" tall with a projection of 5-5/16" across the top.

Looking for that special molding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.500" / Depth of Cut = .625" (top knives).

Thickness = 1.063" / Depth of Cut = .776" (right blades) & .776" (left cutters).
