Crown Moulding 7-1/2" - 5

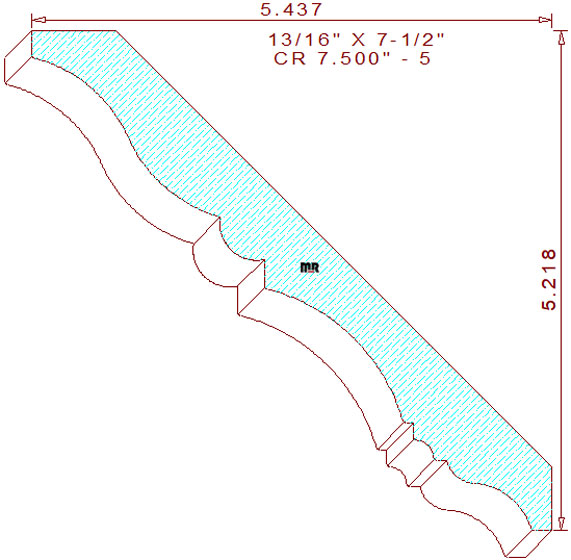

This extravagant crown moulding 7-1/2" - 5 measures 7.534" wide by .813" thickness, authorizing the pattern to be machined out of four quarter lumber. The lavish profile is composed of a 1/4" tall line segment on the top left, connected to a 1-1/2" concave semicircle tangent to another 1-1/2" convex arc forming the lovely cyma recta, attached to a 41/64" half round bead and a 5/16" vertical fillet with a two inch cove in the center, merged with a 3/16" cove flanked by a horizontal and vertical line segment, joined to a two tangent radius ogee with a 7/32" wide horizontal line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 5-7/32" tall with a projection of 5-7/16" wide.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create visually stunning molding profiles that will complement the architectural decor of your elegant home or office.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.500" / Depth of Cut = .434" (top knives).

Thickness = .812" / Depth of Cut = .472" (right blades) & .626" (left cutters).
