Crown 7-1/2" - 6
Crown 7-1/2" - 6

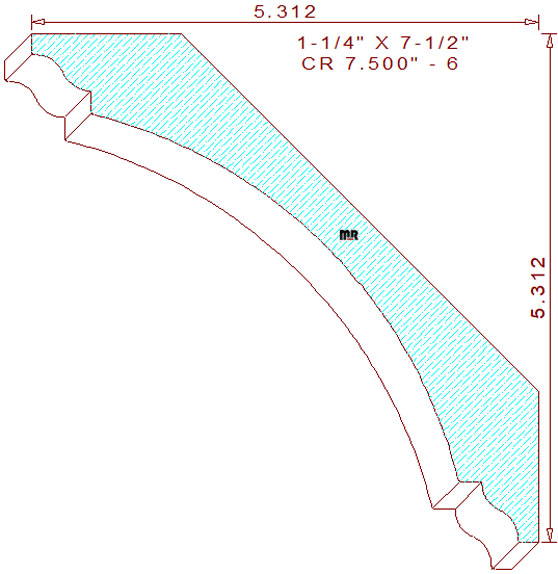

This deep concave 7-1/2" - 6 crown mould measures 7.512" width by 1.250" thickness, necessitating the use of six quarter lumber for machining on an industrial moulder. The lavish terminating profile contains a 5-1/4" radius cavetto in the center, flanked by a 1/4" fillet joined to a two tangent radius ogee with a 7/32" line segment on the top and bottom corners of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-5/16" tall with a projection of 5-5/16" across the top.
Are you a molding manufacturer? Please add your company information to our millwork suppliers map. This valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free; offer your clients beautiful wood pattern designs that will enhance the elegance and luxury of their homes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.112
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.112
Top Cutter Head
Width: 7.500
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$505.00
Not Needed
Total:
$814.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$538.00
Not Needed
Total:
$866.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$587.50
Not Needed
Total:
$944.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
