Crown 7-1/2" - 7

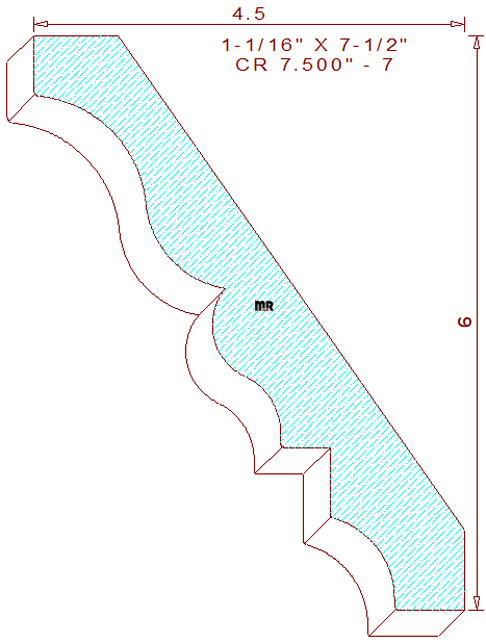

This visually stunning 7-1/2" - 7 crown mould measures 7.500" wide by 1.062" thickness, allowing the pattern to be machined out of five quarter lumber. The elegant terminating profile is composed of a 5/8" tall vertical line segment on the top left, connected to a 1-1/4" concave semicircle tangent to a one inch convex arc forming the cyma recta, joined to a two tangent radius cyma reversa in the center, merged with a 1/2" wide by 23/32" tall perpendicular notch and a 7/8" cove with a 47/64" broad horizontal line segment on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 6" tall with a projection of 4-1/2" wide.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years’ experience in woodworking, and a former Weinig moulder/grinder field service technician. From a mere idea in one's mind to a reality in their home, our custom profiles reflect the creative style of your imagination. Let us help you complement the architectural decor of any room with one or more of our attractive molding patterns.
