Crown 7-9/16"

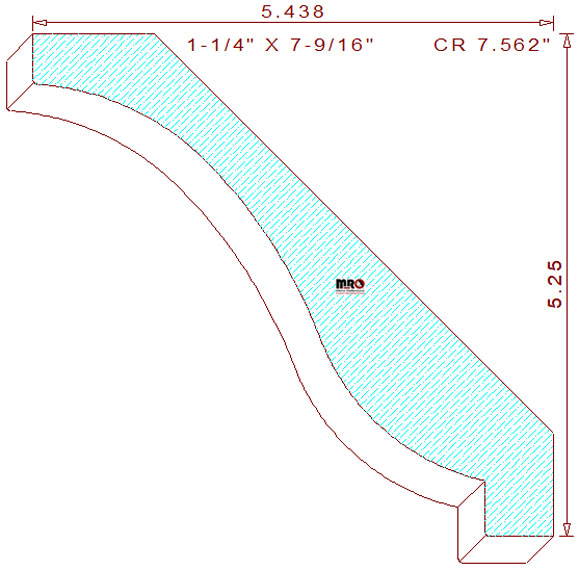

This substantial 7-9/16" crown mould measures 7.558" width by 1.250" thick, requiring a 7-13/16" wide blank of six-quarter lumber for machining, sprung (lying horizontally flat) on a commercial moulder. The beautiful terminating profile composes a 17/32" vertical line in the upper left corner. The short line connects to a free-flowing three-tangent radius cyma recta in the centre, with 19/32" tall by 9/32" wide perpendicular lines on the design's bottom right corner. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 5-1/4" tall with a 5-7/16" projection across the top.

Review our commentary about axial constant positioning for crown bevels. The article will help you dial this profile in axially, provided the machine is properly calibrated. Two high points in the pattern layout are deliberately positioned on the same plane. Our disciplined design features will ensure excellent hold-down conditions during milling, provided the pressure shoe is parallel to the machine bed-plates.
