Crown Moulding 7-3/4" - 5

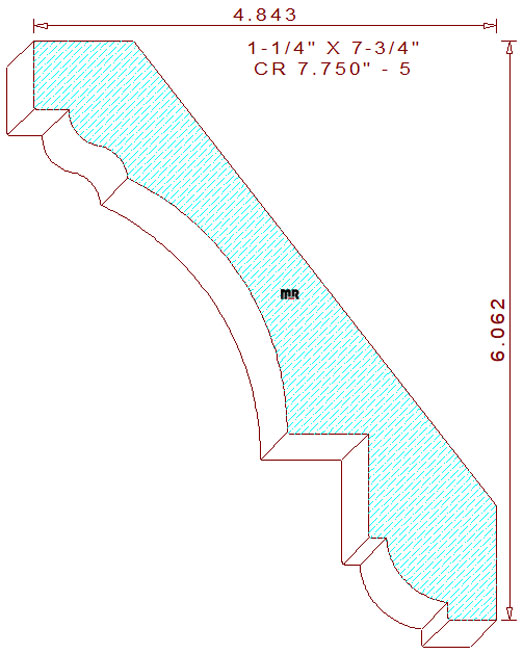

This gorgeous crown molding 7-3/4" - 5 measure 7.759" width by 1.250" thickness requiring the use of six quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The distinctive terminating profile contains a 23/32" tall by 3/8" broad perpendicular lines joined to a small ogee on the top left. The center consists of a 2-59/64" radius concave semicircle merged with a 55/64" wide by 1-3/32" tall notch, attached to a 3/4" ovolo with a 33/64" flat line on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, as well as set the oriented height at 6-1/16" tall with a projection of 4-27/32" across the top.

Try one of our 125% concentration ultimate CBN (cubic boron nitride) grinding wheels, finish grinding at 3000 rpm with a twenty-degree back clearance angle will create a superior micro edge on all your high-speed steel profile knives. Read this article or watch the videos to help better understand how to align a borazon wheel to axial constant position on a Weinig R960 profile grinder. During the machining process, the knives will be capable of milling some of the finest quality architectural moldings you have ever produced.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.750" / Depth of Cut = .655" (top knives).

Thickness = 1.250" / Depth of Cut = .643" (right blades) & .945" (left cutters).
