Crown 7-7/8" - 3
Crown 7-7/8" - 3

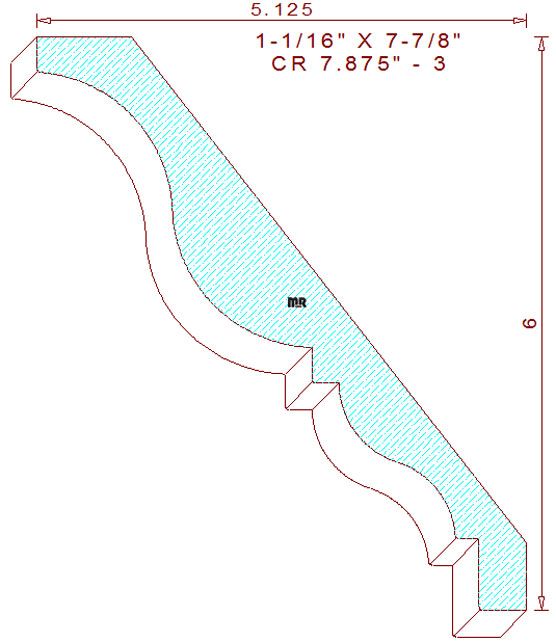

This unique 7-7/8" - 3 crown mould measures 7.875" wide by 1.062" thickness. The design consists of two french curves separated by a stepped fillet in the center with another stepped fillet at the bottom and a straight fillet on top. Installed height is 6" tall with a projection of 5-1/8" wide, spring angles are thirty-eight and fifty-two degrees.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.781
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.436
Top Cutter Head
Width: 7.875
Depth of Cut: 0.719
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$526.00
Not Needed
Total:
$868.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$560.50
Not Needed
Total:
$922.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$612.25
Not Needed
Total:
$1002.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
