Crown Moulding 8"

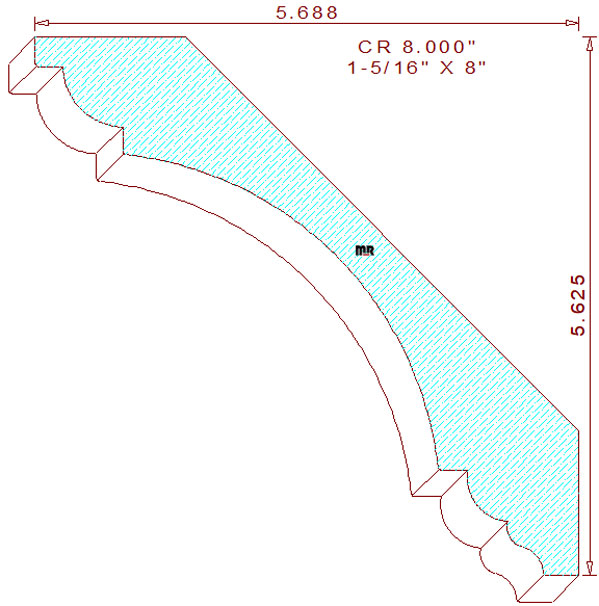

This distinctively beautiful crown moulding 8" measures 8.000" wide by 1.312" thickness, enabling the pattern to be milled sprung (laying horizontally flat) out of six quarter lumber. The sumptuous supporting profile is composed of a 5/16" tall by 9/32" wide perpendicular lines, joined to a 41/64" quarter round bead with a 9/32" vertical fillet creating the ovolo on the top left, attached to a 3-45/64" cove with a 5/16" horizontal fillet in the center, merged with a 15/32" convex arc and a small two tangent radius cyma reversa with a 3/8" wide fillet on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner portion of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 5-11/16" tall with a projection of 5-5/8" wide.

Looking for that special moulding to enhance the architectural style of your current project, send us a sketch, custom profile design is our specialty. Experience the elegant beauty we can create together from your outlined idea concepts and our vast knowledge of the woodworking industry.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 8.000" / Depth of Cut = .812" (top knives).

Thickness = 1.312" / Depth of Cut = 1.065" (right blades) & 1.109" (left cutters).
