Crown 8" - 13
Crown 8" - 13

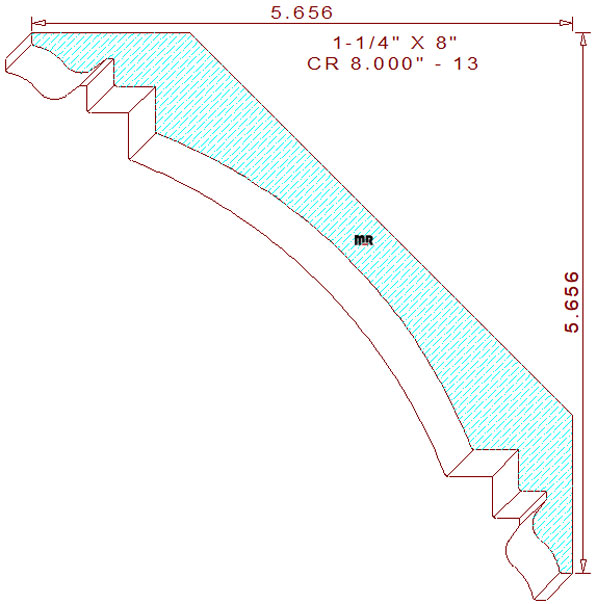

This hollowed 8" - 13 crown mould measures 8.000" wide by 1.250" thickness, allowing the detail to be machined sprung (laying horizontally flat) out of six quarter lumber. The symmetrical terminating profile is composed of a 5-25/32" cove in the center, flanked by a 7/16" by 1/2" notch that transitions into a 5/64" wide by 9/32" deep sunk fillet in the upper and lower portion, attached to a small two tangent radius ogee with a 9/64" vertical & horizontal line at the top and bottom of the detail. The fixed spring angles are at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 5-21/32" tall and wide. We offer a six inch version of this profile for your review and consideration, crown 6.000" - 30.
Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free flawless DXF files, see how easy the services we provide can increase productivity while reducing manufacturing cost.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 1.165
Left Cutter Head
Thickness: 1.625
Depth of Cut: 1.165
Top Cutter Head
Width: 8.000
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$533.00
Not Needed
Total:
$861.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$195.00
$152.00
(Template not needed)
$568.00
Not Needed
Total:
$915.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$209.25
$166.25
(Template not needed)
$620.50
Not Needed
Total:
$996.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
