Crown 8" - 2
Crown 8" - 2

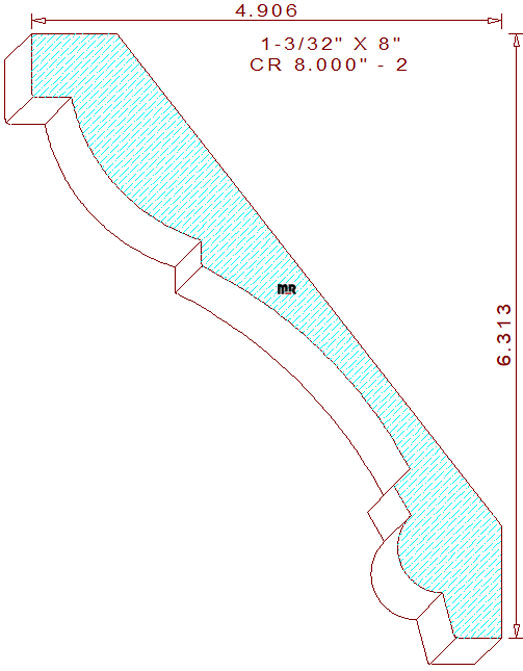

This large visually appealing 8" - 2 crown mould measures 8.000" wide by 1.093" thickness allowing the pattern to be milled sprung (laying horizontally flat) out of five quarter lumber. The distinctive supporting profile is composed of a 43/64" tall vertical line merged with a 27/64" broad horizontal line on the top, connected to a two inch radius semicircular arc with a 9/32" vertical line creating a lovely ovolo in the upper portion, attached to a five inch radius cove that joins to a 7/8" wide torus shaped bead with a 1/2" horizontal segment at the bottom of the design. The fixed spring angles are thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 6-5/16" tall with a projection of 4-15/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.720
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.702
Top Cutter Head
Width: 8.000
Depth of Cut: 0.781
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$533.00
Not Needed
Total:
$885.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$568.00
Not Needed
Total:
$939.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$620.50
Not Needed
Total:
$1020.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
