Crown 8-1/8"
Crown 8-1/8"

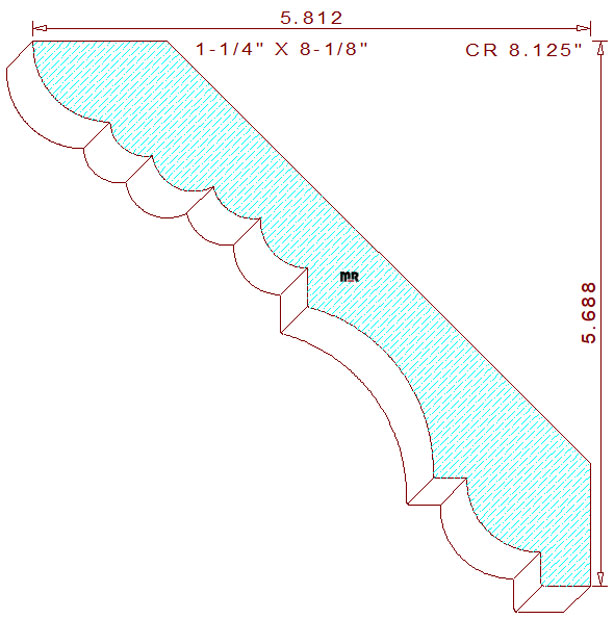

This 8-1/8" reeded crown mould measures 8.132" width by 1.250" thickness, requiring the use of six quarter lumber for milling on a commercial-grade moulder. The enchanting supporting profile contains five cascading semicircular beads on the top left. The partial circle connects to a 13/32" vertical fillet; it merges into a 1-3/4" cove with a 23/64" horizontal line beneath. The remaining portion consists of a 3/4" quarter round with a 23/64" tall by 33/64" broad perpendicular line on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 5-11/16" tall with a projection of 5-13/16" across the top.
Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download our free DXF files, see how easy the services we provide can increase productivity while reducing manufacturing cost.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.990
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.902
Top Cutter Head
Width: 8.125
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$504.50
Not Needed
Total:
$813.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$540.00
Not Needed
Total:
$868.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$593.25
Not Needed
Total:
$949.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
