Crown 8-1/2" - 3
Crown 8-1/2" - 3

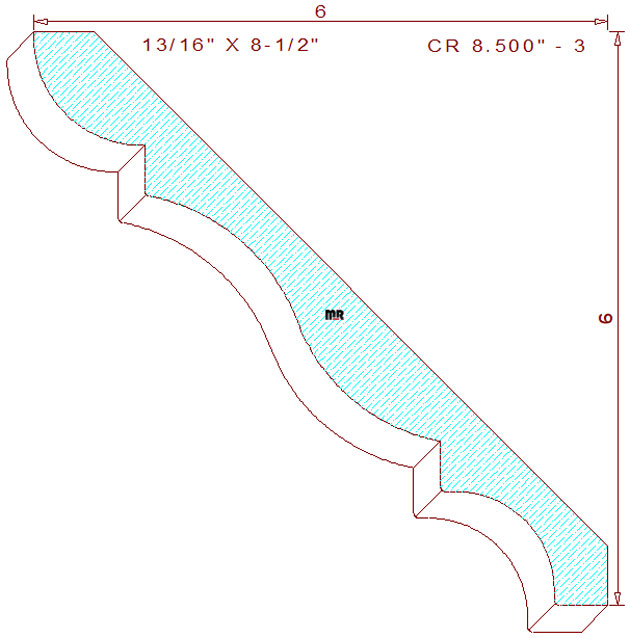

This creative 8-1/2" - 3 crown mould measures 8.486" width by .813" thickness enabling the use of four quarter lumber for machining on an industrial-grade molder. The grand supporting profile contains a 1-5/32" radius quarter round arc joined to a 17/32" vertical line segment on the top left. That section connects to a two tangent radius s-shaped curvature creating the cyma recta in the center with an additional 17/32" vertical drop in elevation. The remaining portion of the design consists of a 1-1/32" cove with a 9/16" horizontal fillet on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 6" tall with a projection of 6" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.441
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.441
Top Cutter Head
Width: 8.500
Depth of Cut: 0.473
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$524.00
Not Needed
Total:
$814.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$561.00
Not Needed
Total:
$870.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$616.50
Not Needed
Total:
$954.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
