Crown Mould 8-5/8" - 1

Crown Mould 8-5/8" - 1

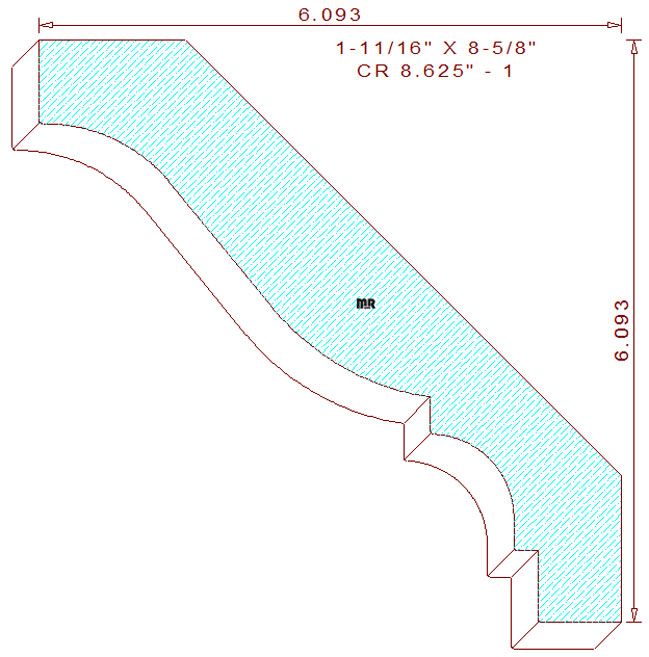

This 8-5/8" - 1 crown mould measures 8.625" wide by 1.687" thickness. The profile is comprised of a 7/8" vertical fillet at the top attached to a cyma recta in the middle that transitions into a cavetto flanked by vertical and notched fillets. The spring angles are fixed at forty-five degrees which sets the installed height and projection at 6-3/32" tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
