Crown 8-3/4" - 3
Crown 8-3/4" - 3

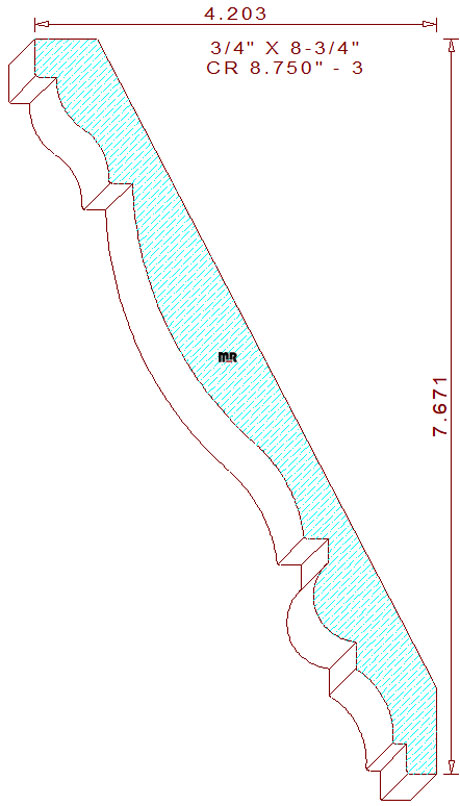

This prestigious 8-3/4" - 3 crown mould measures 8.750" wide by .750" thickness, enabling the pattern to be milled from four-quarter lumber. The elegantly ornate profile features a lovely combination of two different-sized cyma reversa, flanked by horizontal and vertical lines that transition into half-round beads and concave semicircles, embellishing the overall design. These custom geometric shapes provide an unmatched architectural flair that will surely enhance the room's lovely decor. We offer a smaller version of this pattern for your review an consideration, crown molding 5.687 - 1.
The spring angles are fixed at 27.619 and 62.381 degrees, these specific back bevels set the installed height at 7-43/64" tall with a projection of 4-13/64" wide, they are included in the downloadable dxf file. Three high points in the detail were deliberately positioned on the same plane; our specialized design features will assure excellent hold-down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.578
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.417
Top Cutter Head
Width: 8.750
Depth of Cut: 0.465
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$537.00
Not Needed
Total:
$870.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$575.00
Not Needed
Total:
$927.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$632.00
Not Needed
Total:
$1012.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
