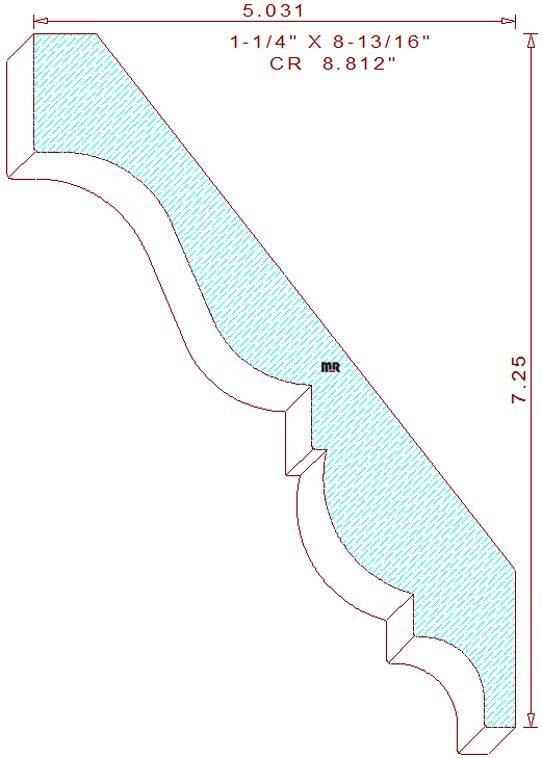

This Creative Crown Moulding 8-13/16" measures 8.812" wide by 1.250" thickness, the ornate design consist of the following geometrical shapes, 1-1/4" wide vertical fillet with an attached cyma recta positioned on top with a centered stepped fillet attached to a ovolo and cavetto that are divided by a 7/16" tall vertical fillet. When properly installed the height becomes 7-1/4" tall with a projection of 5-1/32" wide with the spring angles fixed at thirty-eight and fifty-two degrees. The points of the design are purposely located on the same level plane for maximum hold down capabilities while milling the pattern. This detail will require six quarter lumber to mill this pattern, including a profile knife grinder and moulder that is capable of machining a profile width of 8.813".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
