Crown Moulding 9" - 1

Crown Moulding 9" - 1

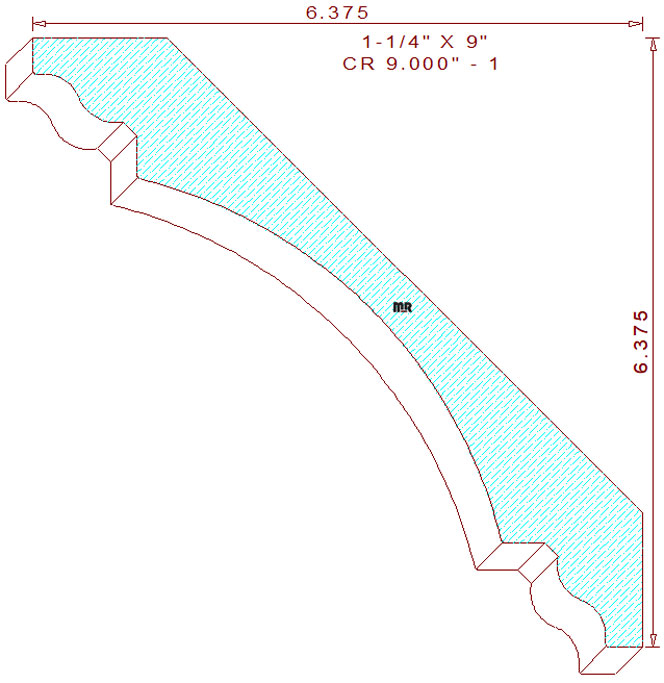

This big symmetrical crown moulding 9" - 1 measures 9.000" wide by 1.250" thickness. The decorative profile is comprised of a 5-5/32" radius cove in the center, flanked by 29/32" tall and wide lines, connected to a 15/64" wide beveled sunk fillet that's joined to a small cyma recta and a cyma reversa with a 3/8" vertical and horizontal line at the top and bottom of the design.

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 6-3/8" tall and wide. Four high points in the design were intentionally positioned on the same level plane, this design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the machine's pressure shoe is set parallel to the moulder bed plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 9.000" / Depth of Cut = .750" (top knives).

Thickness = 1.250" / Depth of Cut = .996" (right blades) & .996" (left cutters).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
