Crown Moulding 9-3/8"

Crown Moulding 9-3/8"

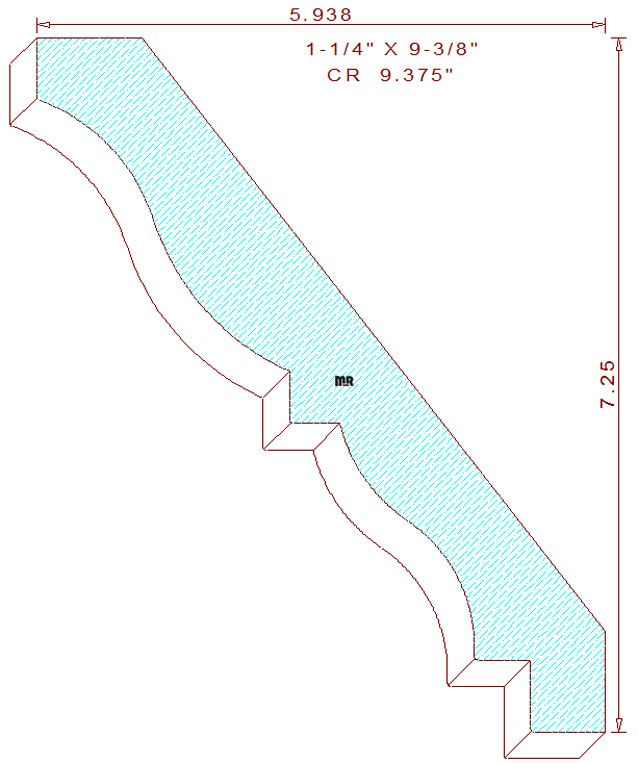

This Crown Moulding 9-3/8" measures 9.375" wide by 1.250" thickness, it will required six quarter lumber to be able to produce this pattern, the profile is composed of two different sized cyma recta and cyma reversa details divided by both horizontal and vertical fillets. When installed the height becomes 7-1/4" tall with a projection of 5-15/16" wide with the spring angles fixed at thirty-eight and fifty-two degrees. The points of the design are positioned on the same level plane creating superior hold down conditions during the milling process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
