Crown Moulding 9-7/8"

Crown Moulding 9-7/8"

Crown Moulding 9-7/8"

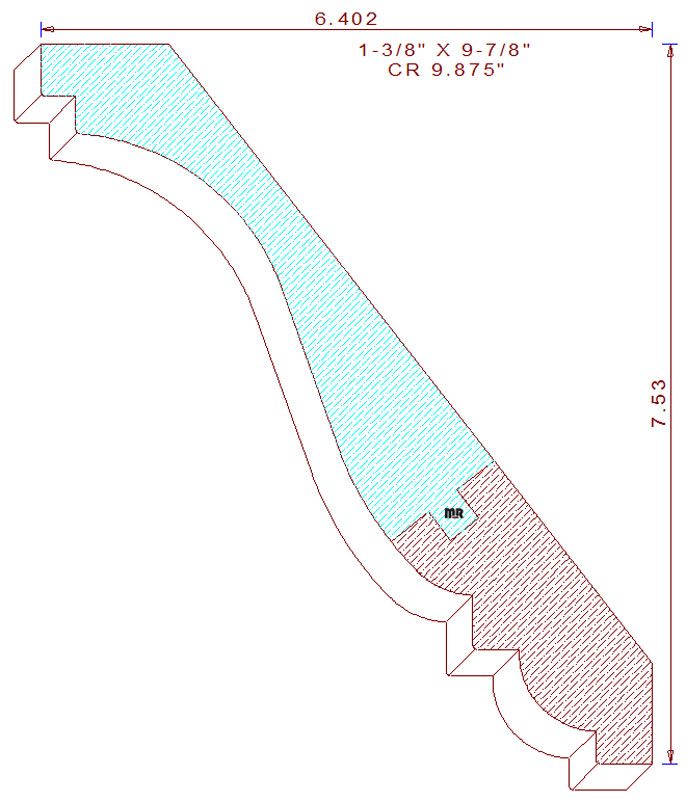

This Large Two Piece Crown Moulding 9-7/8" measures 9.875" wide by 1.375" thickness, the profile is composed of notched fillet top with a cyma recta positioned in the center and an ovolo flanked by fillets in the bottom portion of the design. The pattern consist of two pieces that will be milled separately then assembled either in the shop or on the jobsite. When installed the height becomes 7-17/32" tall with a projection of 6-13/32" wide with the spring angles fixed at thirty-eight and fifty-two degrees, there are a total of six templates included in the downloadable template ready dxf file.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
