Window Sill / Stool Moulding 1-1/16"

Window Sill / Stool Moulding 1-1/16"

Window Sill / Stool Moulding 1-1/16"

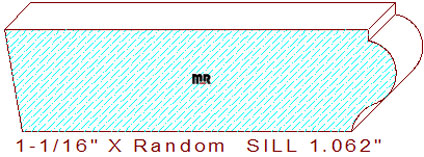

This window sill/stool moulding 1-1/16" measures 1.062" thickness, requiring the use of five quarter lumber for milling, the width can be machined to any desired size with in the parameters of the molder or shaper used to cut the pattern. The beautiful profile is composed of a ten degree beveled edge on the left, this allows scribing the pattern to the window opening during the installation process, the decorative front edge consists of a 1/8" vertical line connected to a two tangent ogee creating the common s-style curve used in sill moldings.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 1.062" / Depth of Cut = .469" (right blades) & .223" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
