Window / Door Sill Moulding 3-5/16"

Window / Door Sill Moulding 3-5/16"

Window / Door Sill Moulding 3-5/16"

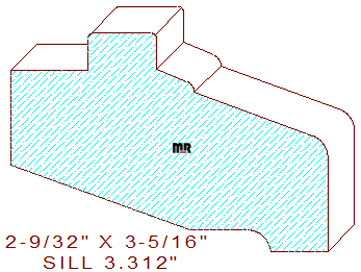

This hefty window/door sill moulding 3-5/16" measures 3.312" wide by 2.281" tall when installed, the machining dimensions are 3.759" wide by 1.796" thickness, enabling the pattern to be milled from eight quarter lumber. The intricate profile is comprised of a 13/16" by 13/32" deep rabbet on the left, connected to a 23/32" wide raised fillet in the center, attached to two down sloping angled lines with a 1/4" eased edge at 1-7/32" height dimension, the bottom is tapered on the left with a upside down congee that joins to the flat bottom on the right side of the detail.

This cad generated dxf file contains four professionally designed profile template drawings with abundant information to create cutters for this beautiful sill molding. We always provide sufficient blend areas in the knives so no one will ever realize where one moulding cutter begins or ends.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.759" / Depth of Cut = .433" (top knives) & .220" (bottom cutters.)

Thickness = 1.796" / Depth of Cut = .799" (right blades) & .826" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
