Door Sill / Threshold Moulding 3-7/8"

Door Sill / Threshold Moulding 3-7/8"

Door Sill / Threshold Moulding 3-7/8"

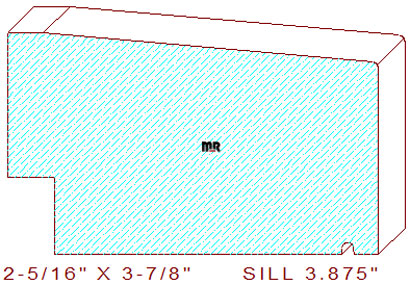

This large door sill/threshold moulding 3-7/8" measures 3.875" wide by 2.312" thickness requiring ten quarter lumber to mill this pattern on a industrial moulder. The hefty profile is comprised of a 3/8" wide straight line on the left, connected to a five degree beveled with a 1/16" eased edge line that transitions the thickness to 2" on the thin side of the design. The left side rabbet measures 1/2" wide by 13/16" tall, the bottom has a small 1/8" wide by 1/8" deep drip edge located 1/4" from the front edge.

We invite you to search for other design ideas for your elegant home or office, we have over 15,000 alternative molding options for you to choose from, simply alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.875" / Depth of Cut = .519" (top knives) & .125" (bottom cutters.)

Thickness = 2.312" / Depth of Cut = .500" (right blades.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
