Sill Apron Moulding 4" - 1

Sill Apron Moulding 4" - 1

Sill Apron Moulding 4" - 1

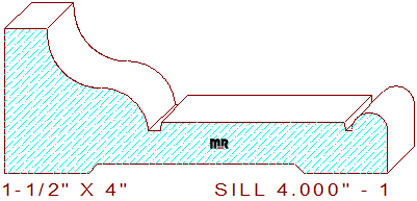

This stylish window sill apron molding 4" - 1 measure 4.000" width by 1.500" thickness, requiring the use of eight quarter lumber for milling on an industrial-grade molder. The stunning detail contains a 7/16 flat line joined to a graceful two tangent radius s-shaped curvature on the top left. The beautiful ogee attaches to a 1/8" broad sunk fillet and a 1-15/16" flat line in the center, merged with a 1/16" dado and a 3/8" full half-circle on the right side of the design.

Looking for that special molding to enhance the architectural style of your current project, send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.000" / Depth of Cut = 1.219" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
