Window Sill Moulding 4-1/4"

Window Sill Moulding 4-1/4"

Window Sill Moulding 4-1/4"

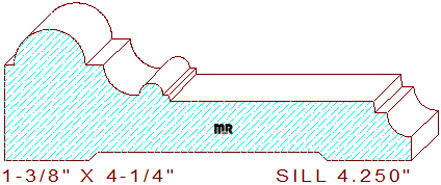

This lovely window sill moulding 4-1/4" measures 4.250" wide by 1-3/8" thickness, enabling the pattern to be machined from six or eight quarter lumber. The innovative profile is comprised of a 3/4" wide half round circle flanked by a 3/32" wide fillet and a 3/16" wide line segment on the top left, connected to a 11/32" radius cove the merges with a 1/4" wide half round bead and a small perpendicular step, attached to a 2-1/8" wide flat line that transitions into a 1/8" by 1/8" notch with a 1/4" radius cavetto leaving a 1/4" thickness dimension on the right side of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.250" / Depth of Cut = 1.125" (top knives) & .093" (bottom cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
