Window Sill Apron 4-1/4" - 1
Window Sill Apron 4-1/4" - 1

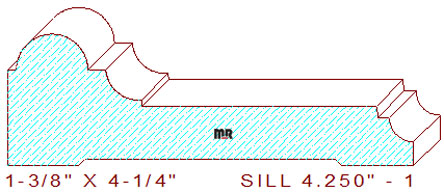

This beautiful 4-1/4" - 1 window sill apron measures 4.250" wide by 1-3/8" thick. The creative design is comprised of a 3/4" wide half circle, flanked by a 3/32" wide, and a 3/16" wide horizontal fillet, connected to a 11/32" radius cove with a 1/16" deep step, attached to a 2-1/2" wide horizontal line that transitions into a 1/8" by 1/8" notched fillet with a 1/4" radius cavetto located on the thin side of the pattern.
Utilize any of our moulding patterns to create a stylish moulding catalog for your millwork company, offer more eye-catching profiles to your clients while reducing production cost spent on knife design. Please let us help you transform your client's house under construction into a home.
Search our backout category for an appropriate relief cut for this pattern. We have a few options for you to choose from.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 1.125
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.00
$303.00
Total:
$626.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$323.00
Total:
$666.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$353.00
Total:
$726.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
