Window Sill Apron 4-1/4" - 2
Window Sill Apron 4-1/4" - 2

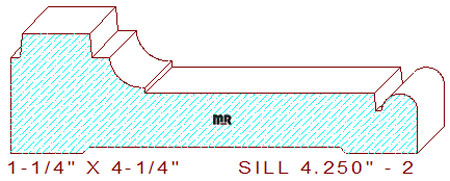

This modern 4-1/4" - 2 window sill apron measures 4.250" wide by 1-1/4" thick. The chic design comprises a 3/4" wide by 1/4" deep raised fillet, flanked by a 3/32" wide, and a 3/16" wide horizontal fillet, connected to a 11/32" radius cove with an 1/16" deep step, attached to a 2-3/8" wide horizontal line that transitions into a 1/16" wide by 3/16" deep sunk fillet with a 3/8" wide half circle located on the thin side of the pattern. Browse our backout category for an appropriate relief cut for this pattern. We have a few options to choose from.
Ever wonder who produces and provides some of the finest quality custom moulding knives with excellent customer service and affordable pricing? Please offer us an opportunity to demonstrate our abilities, and you will be pleasantly surprised with our services.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.250
Depth of Cut: 0.973
Bottom Cutter Head
Width: 4.250
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$323.00
$303.00
Total:
$626.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$343.00
$323.00
Total:
$666.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$373.00
$353.00
Total:
$726.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
