Window Stool Moulding 4-1/4" - 3

Window Stool Moulding 4-1/4" - 3

Window Stool Moulding 4-1/4" - 3

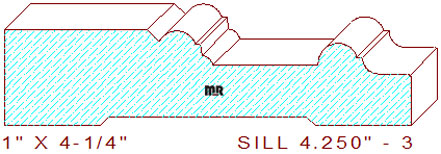

This window sill stool moulding 4-1/4" - 3 measures 4.250" wide by 1.000" thickness. The stylish profile is comprised of a 1-1/2" wide horizontal line with a 1/8" wide chamfer, connected to a half round circle, stepped fillet and a quarter round bead, attached to a 1-3/32" wide sunk fillet, half round circle with a 15/32" wide congee consisting of a 11/64" radius cove on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

We offer thousands of innovative molding profiles intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind, to reality in your client's beautiful home, our patterns reflect the attractive elegance and architectural style of their imagination, be creative by mixing and matching a few of our beautiful designs today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .656" (top knives) & .062" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
