Door Sill 4-5/8"
Door Sill 4-5/8"

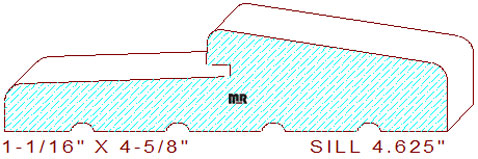

This 4-5/8" door sill measures 4.625" wide by 1.062" thickness. The functional dual angled profile is installed on top of a door threshold, it's comprised of two different size sloped sides. The smaller thickness side dimension is 2-1/8" wide with a two degree angle and a 3/16" eased edge, the opposite side is 2-1/2" broad with a 1/8" radius at the top with a 8.87-degree bevel that transitions downward to a 23/32" thickness with a 3/16" eased edge. The saw kerf for the weather stripping is milled with either a universal moulder spindle or a table saw after the milling process.
Looking for that special pattern to enhance the architectural style of your current project, send us a sketch. Custom design is our specialty. Experience the beauty we can create together from your outlined ideas and our vast knowledge of the woodworking industry.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 4.625
Depth of Cut: 0.906
Bottom Cutter Head
Width: 4.625
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$344.00
$322.50
Total:
$666.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$365.50
$344.00
Total:
$709.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$397.75
$376.25
Total:
$774.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
