Window Apron Moulding 4-3/4"

Window Apron Moulding 4-3/4"

Window Apron Moulding 4-3/4"

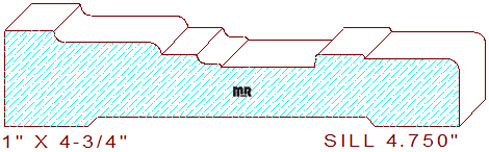

This elegant window sill apron moulding 4-3/4" measures 4.750" wide by 1.000" thickness. The attractive pattern is generally installed below the window sill stool molding, this detail will a touch of opulence to the overall architectural appeal to any room. The profile is comprised of a 33/64" wide horizontal line joined to a 1-1/8" wide bidirectional congee, connected to a 3/8" wide straight line with another smaller congee that transitions into a 63/64" wide sunk fillet, attached to a 33/64" wide raised fillet and a 63/64" wide flat line with a 1/8" eased edge on the thin side of the design. Browse our backout category for a suitable relief cut for this detail, we have a few options to select from.

Review our commentary on custom made pressure shoes, this helpful step by step article will help you mill this profile to perfection. Did you know we design and grind moulder knives for all the major brand names of machinery including Weinig, Leadermac, Diehl, Kentwood, Wadkin, Scmi, Shop Fox, Williams & Hussey and more. Try our exceptional services, you'll be delighted with the results, all the beautiful mouldings you manufacture will surely be a cut above the rest.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.750" / Depth of Cut = .580" (top knives) & .093" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
