Door Sill Moulding 6-5/16"
Door Sill Moulding 6-5/16"

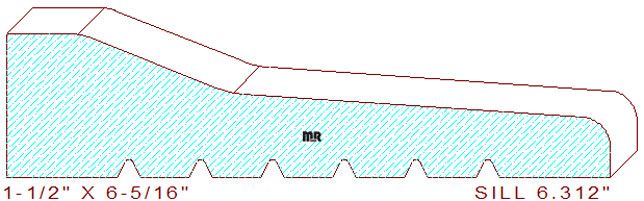

This Door Sill Moulding 6-5/16" measures 6.312" wide by 1.500" thickness, the profile is comprised of a 11/16" wide fillet on top that tapers downward at two different angles to a finish thickness of 5/8" with a 5/16" radius positioned on the edge. The downloadable DXF file contains two high precision CAD drawings to create moulder knives for this specific detail
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
